TextBendProcent
POST
Bends a text line along a circular arc. The value is the part of a full circle that the line covers, in percent: 0 is a straight line, 50 puts the line on a semicircle and 100 on a full circle.
The sign sets the direction of the bend:
- Positive values (convex, ∪ shape): the ends of the line curve upward. The text runs along the bottom of a circle and the tops of the letters point toward its centre, like text along the lower edge of a round badge.
- Negative values (concave, ∩ shape): the line arches upward. The text runs along the top of a circle and the tops of the letters point away from its centre, like text along the upper edge of a round badge.
Supported range: -100 to 100; values outside this range are treated as -100 or 100. TextBendProcent is set per monogram, so each line can have its own bend.

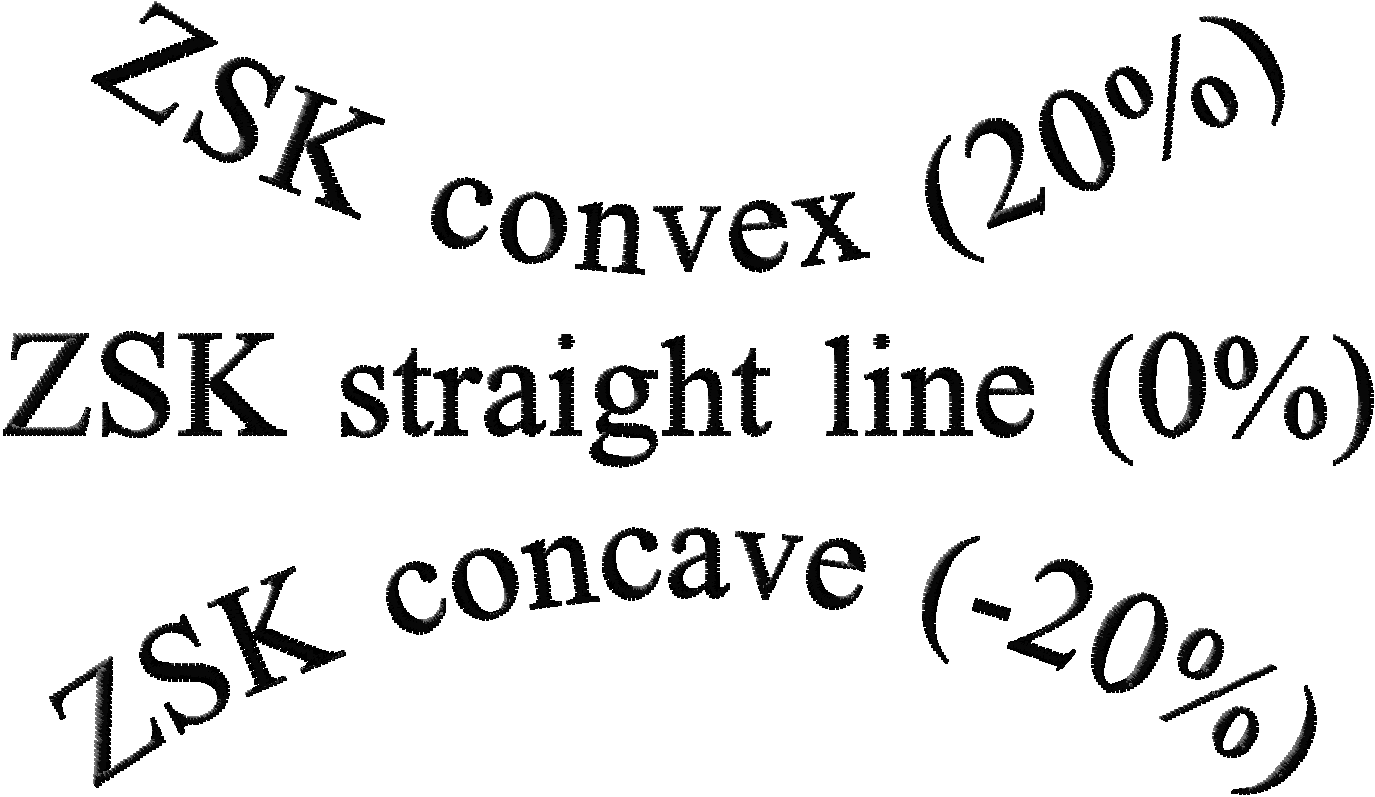

The example below creates the three lines in the picture: +20 % (top), 0 % (middle) and -20 % (bottom).
Parameters
| Parameter |
Type |
Description |
Required |
TextBendProcent |
double |
Bend of the line in percent of a full circle: 0 = straight, 50 = semicircle, 100 = full circle. Positive values curve the ends upward (∪), negative values arch the line (∩). Range -100 to 100; values outside are treated as -100 or 100. |
No |
Example
{
"RequestType": "CreatePNG",
"Monograms": [
{
"Text": [
"ZSK convex (20%)"
],
"FontFamily": "Times New Roman",
"FontSizeMM": 10.0,
"UsedNeedle": 1,
"HorizontalAlignment": 1,
"TextBendProcent": 20.0,
"TextStitchParameter": "Premium"
},
{
"Text": [
"ZSK straight line (0%)"
],
"FontFamily": "Times New Roman",
"FontSizeMM": 10.0,
"UsedNeedle": 1,
"HorizontalAlignment": 1,
"TextBendProcent": 0.0,
"TextStitchParameter": "Premium"
},
{
"Text": [
"ZSK concave (-20%)"
],
"FontFamily": "Times New Roman",
"FontSizeMM": 10.0,
"UsedNeedle": 1,
"HorizontalAlignment": 1,
"TextBendProcent": -20.0,
"TextStitchParameter": "Premium"
}
],
"Needle": [
{
"Red": 0,
"Green": 0,
"Blue": 0,
"ColorName": "Black",
"ColorNumber": "20",
"ThreadSize": "40",
"Name": "ISACORD"
}
],
"TrueView": {
"Strichdicke": "300",
"Helligkeit": "100",
"BeleuchtungEin": "1",
"BeleuchtungWinkel": "45",
"AusblendenAktiv": "1",
"AusblendenAb": "127"
},
"PngResolution": 254,
"ServerVersion": 3,
"WebApiLicense": "xxxxx-xxxxx-xxxxx-xxxxx-xxxxx"
}
